V-Nose Guards for Pallet Rack Protection in Low-Clearance Applications
Protecting pallet rack uprights is essential for warehouse safety, but not every facility has the clearance for traditional upright protectors.
In low-clearance rack systems—especially those with beams installed just inches off the floor—standard solutions don’t fit. V-Nose Guard Post Protectors are designed specifically for these applications, providing effective rack protection without interfering with your layout.
The Problem: Low-Clearance Pallet Racking
Many warehouses use rack configurations that maximize vertical space, including:
- 3” x 3” uprights with in-set footplates
- First beams installed ~5 inches off the floor
While efficient, this setup limits your protection options. Traditional pallet rack protectors (12”–24” high) won’t work because they interfere with the first beam, extend into forklift aisles, and create operational hazards. As a result, upright bases are left exposed to forklift impact.
The Solution: V-Nose Guards

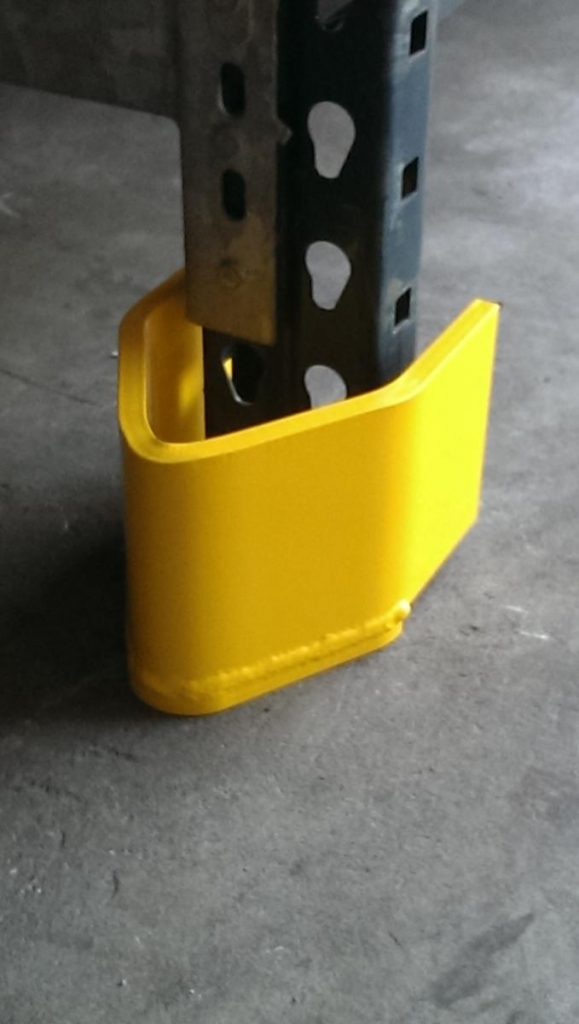

V-Nose Guards are a low-profile alternative designed for pallet rack protection in tight spaces. Key benefits include:
- Low-profile design (4” high): Fits under 5” beam heights
- Angled steel construction: Deflects forklift and reach truck impacts
- Compact footprint: Won’t encroach into aisles
- Heavy-duty durability: Protects against repeated hits
By focusing protection at the base of the upright—where most impacts occur—V-Nose guards deliver targeted, effective defense.
Applications & Compatibility: Where V-Nose Guards Work Best
V-Nose guards are engineered for pallet rack protection in real-world warehouse configurations where traditional upright protectors won’t fit.
They’re specifically designed to work with:
- In-set footplates: Fit securely around standard 3” x 3” uprights without modification
- Low beam placement (~5”): Maintain clearance while protecting the upright base
- Seismic base plates (5” x 8”): An intentional rear gap allows proper fit over larger base plates
These features make V-Nose guards ideal for:
- Low-clearance pallet racking systems
- Warehouses using forklifts or reach trucks
- High-traffic aisles with frequent impact risk
- Facilities that need upright protection without sacrificing aisle space
Choosing the Right Rack Protection
Not all pallet rack protection is the same, and the right choice depends on your rack layout and clearance.
Use traditional upright protectors when there is enough space for full-height coverage, typically with higher first-beam placements to accommodate 12”–24” protection.
Use V-Nose Guards when beam height is too low for standard protectors, such as systems with ~5” floor clearance or seismic base plates. Their low-profile design protects the upright base without interfering with the rack or aisle space.
Upgrade Your Post Protection with Handle-It
V-Nose Guards are a purpose-built solution for a common warehouse challenge: protecting pallet rack uprights in low-clearance environments where traditional protectors won’t fit.
If your system includes low beam placements or seismic base plates, V-Nose guards offer a simple, effective way to protect upright bases without impacting aisle space or warehouse operations.
At Handle-It, we specialize in warehouse protection solutions and can help you determine the right rack protection products for your specific application. If you need guidance, our team is here to help you choose the best option for your facility. Contact us to speak with a warehouse protection expert, or use the link below to learn more about our V-Nose Guards.
V-Nose Guard Post Protectors
