Semi-Automatic Stretch Wrap Machines
Semi-automatic stretch wrap machines significantly improve your packaging operations. They can drastically reduce the time needed to wrap pallets compared to your current manual processes. Save both time and money with our robust line of semi-automatic pallet wrappers.
Choose from one of several models below and click on the one that best fits your needs.
Need help determining which one is right for you? Check out our comparison table.
Showing all 8 results
850PS Semi-Auto Stretch Wrap Machine
800 Semi-Auto Stretch Turntable Wrap Machine
1200UL Ultra Low Profile Stretch Wrap Machine
1100 Semi-Auto Turntable Stretch Wrap Machine
600 Semi-Auto Turntable Stretch Wrap Machine
Pallet Wrapping Machine with Scale

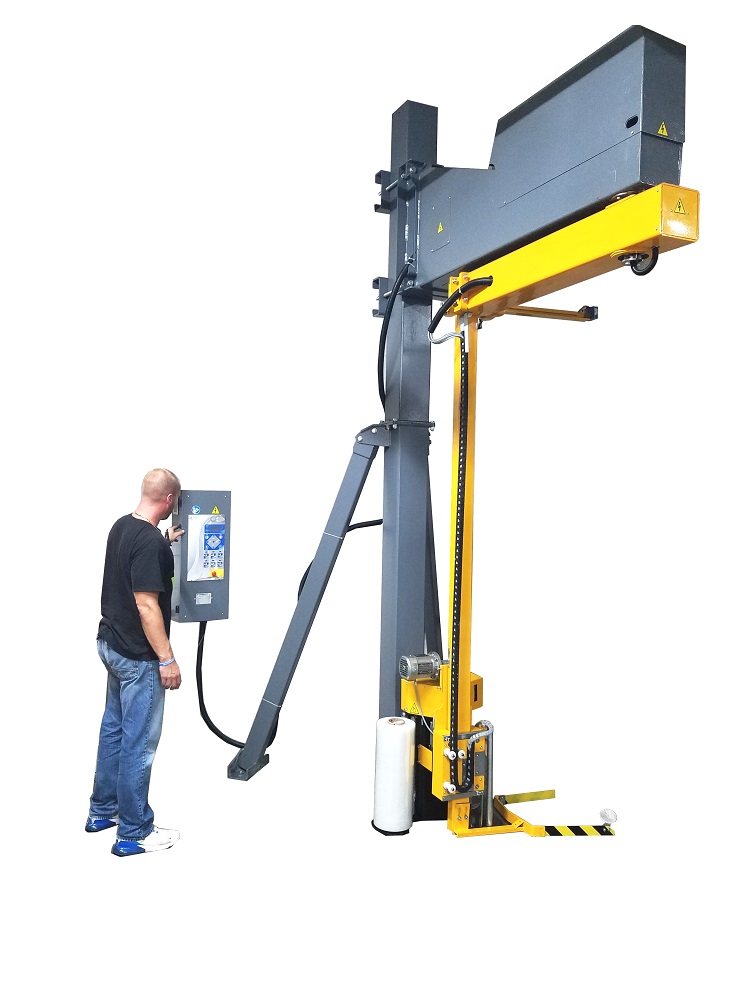

RA 2200 Semi-Automatic Rotary Arm Pallet Wrapper
RA 2300 Semi-Automatic Rotary Arm Pallet Wrapper
Handle It® Pallet Wrapper Benefits
High-Quality Parts & Engineering
We only use brand name and widely available components on our stretch wrappers to ensure high performance and a long lifespan.
Cost and Labor Savings
Reduce the number of workers needed to wrap pallets and save money on film with the 250% pre-stretch feature.
Top-Notch Customer Service
Our dedicated internal customer support team will provide the training, service, and support that will allow your team to achieve peak performance.
Handle It’s Semi-Automatic Stretch Wrap Machine Options
Handle It® has a pallet stretch wrap turntable machine for every budget and application, from entry-level to heavy use! Explore our model pages above to learn more and find the machine that meets your packing needs.
| Model (SWM-SA – 0###) |
|---|
| Max Average Loads Per Day |
| Load Per Hour |
| Load Capacity |
| Machine Dimensions (L x W x H) |
| Photo Eye |
| Electronic Film Tension Control |
| Power Pre-Stretch 250% |
| Variable Power Pre-Stretch (600%) |
| Auto Film Cut |
| Max Wrap Height |
| Extended Mast Wrap Height. |
| Custom Top & Bottom Wraps |
| Rack & Pinion Carriage Drive |
| Integrated Scale |
| Playback Recordable Cycles |
| Onboard Diagnostics |
| Total pallets wrapped counter |
| # Of Cycle Parameters |
| # Of User Saved Cycle Programs |
| Quick Select Parameters |
| Ergonomic Film Change |
| Model (SWM-SA – 0###) | 600 | 800 | 850PS | 1100 | 1200UL | 2200 | 2300 |
|---|---|---|---|---|---|---|---|
| Max Average Loads Per Day | 20 | 100 | 100 | 300 | 200 | 300 | 300 |
| Load Per Hour | 30 | 30 | 30 | 30-35 | 30-35 | 30-35 | 30-35 |
| Load Capacity | 3000lbs. | 4400lbs. | 4400lbs. | 4400lbs. | 3300lbs. | Unlimited | Unlimited |
| Machine Dimensions (L x W x H) | 93” x 59” x 88” | 93” x 59”x 88” | 93” x 59” x 88” | 104” x 59” x 97” | 111” x 65” x 95” | 125” L x 113” W x 140” H | 125” L x 113” W x 140” H |
| Photo Eye | ✓ | ✓ | ✓ | ✓ | ✓ | – | – |
| Electronic Film Tension Control | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Power Pre-Stretch 250% | – | – | ✓ | ✓ | ✓ | ✓ | ✓ |
| Variable Power Pre-Stretch (600%) | – | – | – | Optional | Optional | Yes | Yes |
| Auto Film Cut | – | – | – | Optional | Optional | Optional | Optional |
| Max Wrap Height | 86” | 86” | 86” | 86” | 86” | 94″ | 94″ |
| Extended Mast Wrap Height. | – | 98” | 98” | 118” | 118” | 118” | 118” |
| Custom Top & Bottom Wraps | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Rack & Pinion Carriage Drive | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Integrated Scale | Optional | Optional | Optional | Optional | – | Floor scale reommended | Floor scale reommended |
| Playback Recordable Cycles | – | ✓ | ✓ | – | – | – | – |
| Onboard Diagnostics | – | – | – | ✓ | ✓ | ✓ | ✓ |
| Total pallets wrapped counter | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| # Of Cycle Parameters | 7 | 6 | 6 | 57 | 57 | ||
| # Of User Saved Cycle Programs | 3 | 9 regular & 9 recordable | 32 | 32 | 32 | 32 | |
| Quick Select Parameters | – | – | – | ✓ | ✓ | ✓ | ✓ |
| Ergonomic Film Change | – | – | – | ✓ | ✓ | ✓ | ✓ |
| **Patented Ultra Low Frame No Ramp Needed, Turntable height less than 3/4” ** | ✓ | – | – | ||||
Quality
- Designed and engineered in Europe
- Final assembly, testing, and programming in Milwaukee, Wi
- ISO 9000 certification
- CE compliant
- Utilize high-quality components
- We test and pre-program every machine before shipment
Accessories
We offer a wide range of optional accessories designed to enhance your stretch wrap turntable machine for increased efficiency and productivity. Our add-ons and parts will improve the ROI and make them easier to use. We offer accessories which could help with:
- Easier Loading & oversized pallets (ramps for hand or e-pallet jack, extended frames with bigger turntables)
- Increased Efficiency (integrated scale & label printer, auto-film cutting)
- Unusually sized or unstable loads (top press plate)
- Extreme Environmental needs (cold or icy kit, Peltier cooler kit for hot environments)
- Enhanced Safety options (steel guarding), safety light curtains)
People Also Ask
Delve into our 'People Also Ask' section, where we address commonly asked questions and provide insightful answers about our semi-automatic stretch wrap machines. Your curiosity, our expertise.
What Are Semi-Automatic Stretch Wrap Machines?
Stretch wrap turntable machines are industrial equipment designed to automate the process of wrapping pallets and loads with stretch film. They provide an efficient, safe, and cost-effective solution for securing goods for transportation or storage.
How Do Semi-Automatic Pallet Wrapper Machines Work?
The operator places the pallet onto the turntable and attaches the film. Once the wrap cycle is initiated, the machine automatically spins the pallet and applies the pallet stretch wrap film uniformly. After the cycle completion, the operator cuts the film and removes the wrapped pallet.
Wrapping by Hand vs. Pallet Wrapping Machine
Hand wrapping and using a semi-automatic stretch wrapper machine present two distinct approaches to securing loads. Hand wrapping tends to be not only time-consuming and physically demanding, but often results in inconsistent wrap quality.
In contrast, pallet wrapping machines provide higher efficiency, consistency, and load stability, making them a superior choice for medium to high-volume operations. Additionally, turntable stretch wrappers require far fewer workers who won’t get nearly as tired as they would if wrapping by hand.
What’s The Difference Between Automatic and Semi-Automatic Stretch Wrappers?
Automatic and semi-automatic stretch wrappers differ in their levels of automation. A semi-automatic machine requires manual intervention for load placement, removal, and film attachment. Conversely, an automated machine handles the entire wrapping process without manual involvement. It can also integrate into a conveyor.
If you wrap anywhere from five to ten pallets a day, consider a semi-automatic wrapping machine. For wrapping more than ten pallets daily, an automatic shrink wrapper will provide the high speed you need.
How Much Is a Pallet Wrapping Machine?
The average cost for a pallet wrapping turntable is around $3,000 with a fully automatic machine running anywhere between $5,000 – $20,000+.
How Many Times Should a Pallet Be Wrapped?
A general guideline is to set your machine for two wrap revolutions on the top and two on the bottom. The wrap also goes up and down to cover the middle. We recommend increased wrap revolutions for heavier products.
Applications
Handle It® semi-automatic stretch wrappers are incredibly versatile and ideal for wrapping a wide variety of items, including:
- Boxes—Securely package boxes and box-type items, ensuring optimal protection during transport and storage.
- Barrels & drums—Handle It® wrappers are adept at accommodating circular or unconventional shapes, such as barrels and drums.
- Bags and sacks—Our pallet wrap machines help ensure these soft packages stay intact and stationary.
- Pick and pack mixed products—Enjoy a uniform, well-protected load irrespective of the product size or shape variations.
