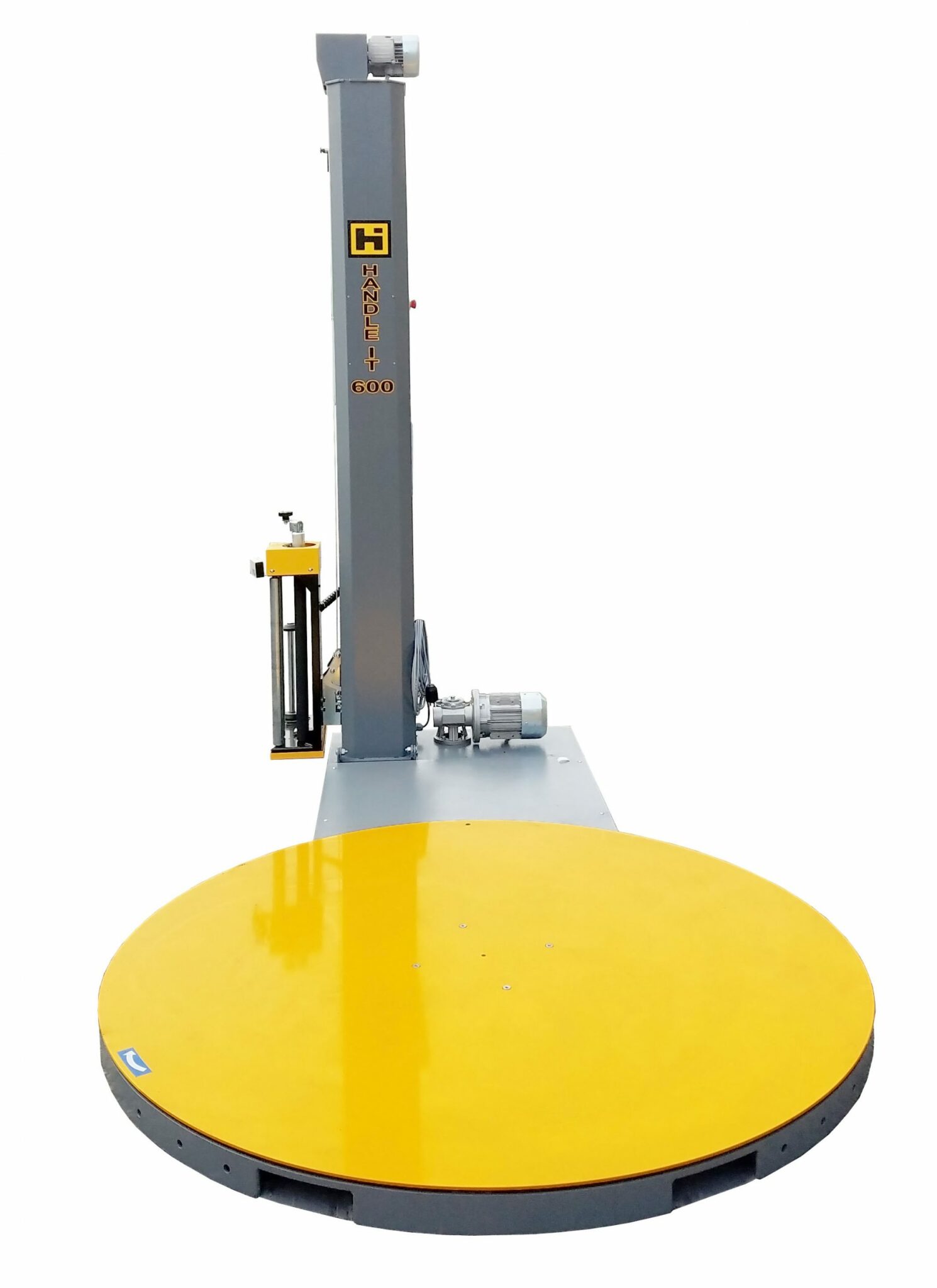

Overview
Performance
- 35 maximum average loads per day
- 85″ maximum load size diagonal
- 86″ maximum load height
- 3000lb load weight capacity
Specifications
- Turntable speed 3-12 RPM
- 59″ Turntable size
- 1/2 HP TEFC Turntable Drive Motor
- 110v standard plug
- Machine size 93″L x 59″ W x 88″ H
Printable product Information Sheet
Features
- Electronic printed circuit board for the control of the cycle;
- Frequency controller for turntable speed adjustment (from 3 to 12 RpM)
- Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)
- Adjustable Mechanical brake for film stretching and tension control
- Photocell for pallet height detection
- Safety stop at the base of the carriage
- Stop at home position
- Power board IP54
- 2 access keys (including lock mode)
- Adjustable parameters by the control panel: cycle selection; bottom turns; top turns; rotation speed; carriage speed going up; carriage speed going down; photocell delay
- Reinforcing operation
- 2 working cycles: up and down; only up
- 3 programs can be saved by the customer
- Acoustic warning at the cycle beginning and stop;
- Powder coating
- Soft start and stop turntable rotation
- 3 year warranty
BENEFITS
- Photo eye automatically senses the height of the pallet.
- Integrated control board makes repair and diagnosis easier and reduces machine down time
- Photo Cell Delay for film overwrap for better load containment
- Heavy Duty Carriage Rollers & Self Lubricating turntable bearings
- Mulitple saved cycles and parameters
- Easily moved with forklifts and plugs into standard 110v wall outlets.
