12” Tall Floor-Mounted Barriers

Floor Mounted Barriers provide reinforced protection that is mounted flush to the floor. The flush design that is 12” tall keeps product and forks from pushing through into pedestrian walkways or protected equipment.

Mounts Flush to the floor

Use as wall guard or around conveyors and machines

Useful as a pallet stop

Request a Quote Dealer Locator

Category:

Overview

  • Constructed of sturdy 11 gauge steel formed into 12″ tall × 6″ deep barriers
  • Gussets on all units and support gussets on lengths 4′ – 10′ increase strength
  • Anchors and bolts are included with every order!
  • Painted safety yellow for high visibility
  • Sizes from 3′ – 10′
  • Flush design keeps product and forktruck forks from going past your protected area.
  • Provide double the height of protection compared to typical guide angles.

Install

  • Guarding underneath racking to section off and protect materials
  • Barriers utilized as pallet backing stops
  • Great low profile flush protection around machines or in plant offices
  • Conveyor lines where you need guarding but also need access to the line.

Literature

Floor Mounted Barrier Product Information Sheet.pdf

Accessories

OPTIONS

  • 45 degree, Inside Corner and Outside Corners available

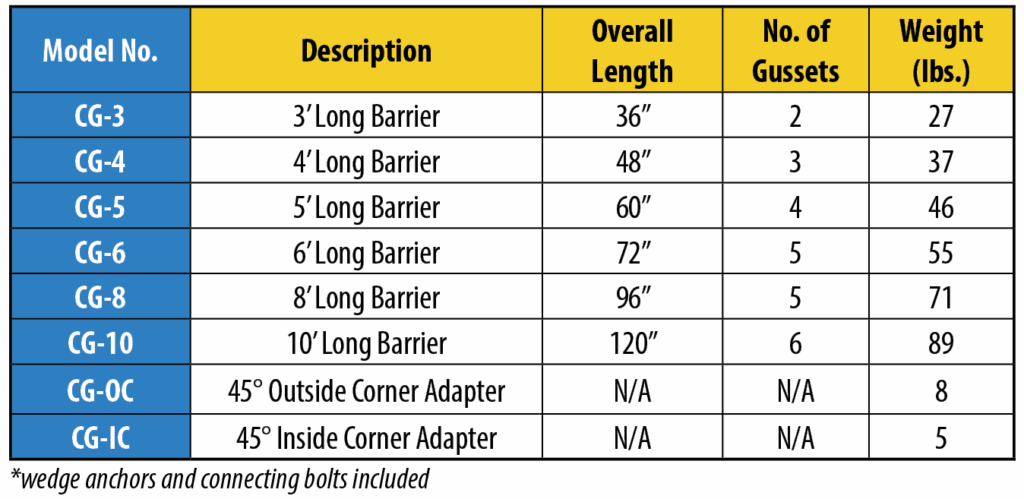

Specifications

Part NumberLengthHeight Depth Material Thickness Number of Gussets Anchor size Weight lbs.
CG-10 10' 12" 6" 11 gauge 63/4" x 4.25" included 89
CG-8 8' 12" 6" 11 gauge 53/4" x 4.25" included 71
CG-6 6' 12" 6" 11 gauge 53/4" x 4.25" included 55
CG-5 5' 12" 6" 11 gauge 4 3/4" x 4.25" included 46
CG-4 4' 12" 6" 11 gauge 33/4" x 4.25" included 37
CG-3 3' 12" 6" 11 gauge 23/4" x 4.25" included 27
CG-IC 5" 12" 6" 11 gauge n/a3/4" x 4.25" included 5
CG-OC 5" 12" 6" 11 gauge n/a3/4" x 4.25" included 8
