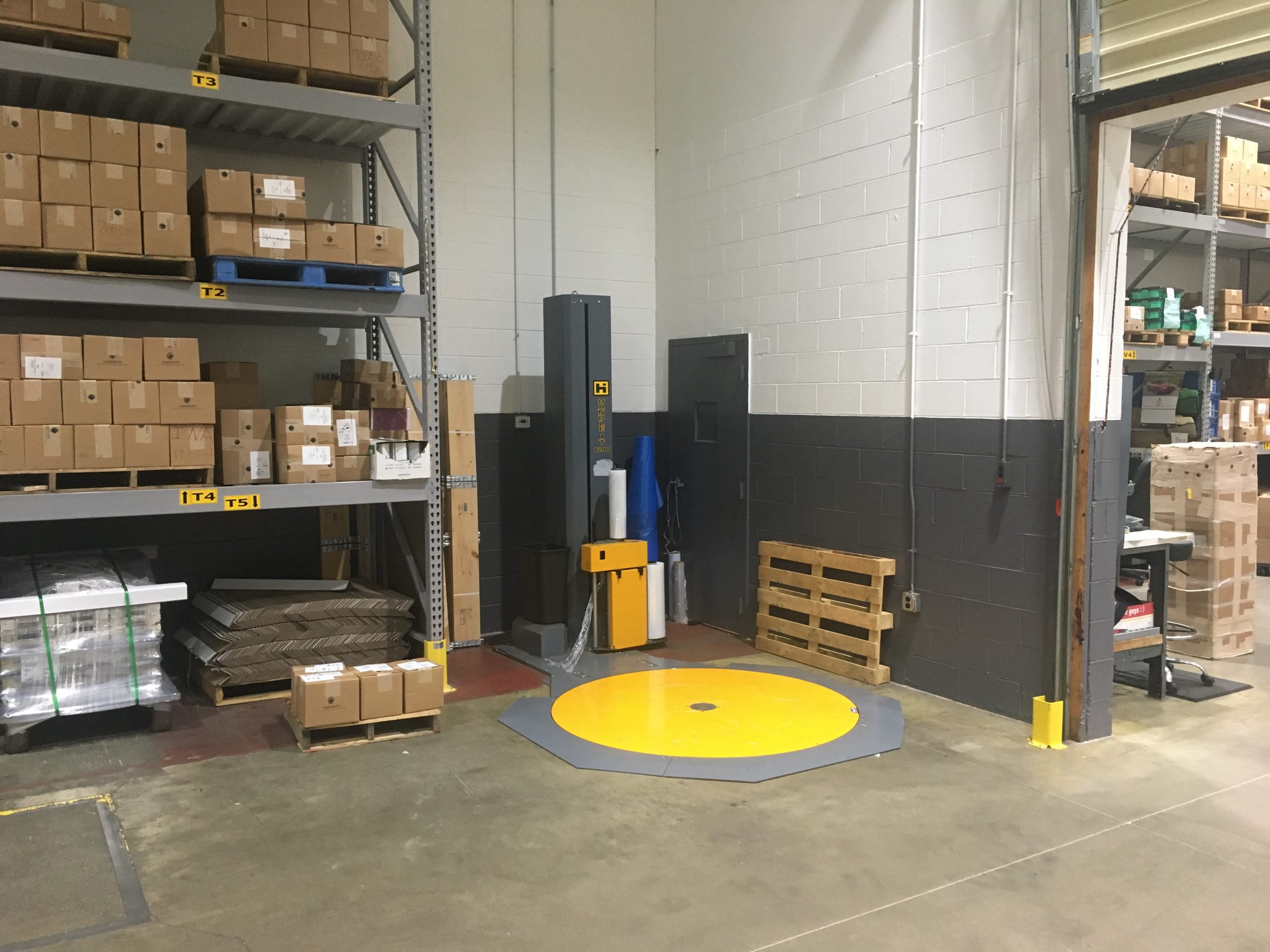

Pallet Wrapping Machine with Scale

Handle-It low-profile turntable style stretch wrap machines can have a factory-installed scale added to the package. We integrate the scale into the unit’s frame and mount a digital display into the mast that accurately shows your pallet weight. The pallet wrapping machine and scale ships fully assembled and calibrated from the factory.

The integrated scale allows for fast and accurate measurements, while the optional label printer saves time and money. Stop estimating weight and cut down on shipping costs by accurately weighing your pallets before shipping!

Choose from one of two scale models, an optional printer, and advanced scale applications:

Categories: , ,

Overview

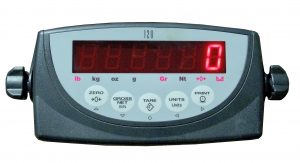

SWS-0850-ASM LED Scale

HI_120Scale

The SWS-0850-ASM model is a cost-effective and reliable solution for weighing pallet loads. It drives up to four 350Ω load cells, and the integrated three-stage digital filtering helps ensure accurate weight data.

The scale comes with a five-button tactical front page coupled with an LED display that’s easy to read. The two independent communication ports allow for printer and EDP programmability. One of the ports is full-duplex, and the other is unidirectional or active 20 mA current loop.

SWS-0850-ASM Specs

Standard features include:

  • LED display, 0.8in (20.3mm) six-digit, seven-segment
  • Standardized EDP command sets
  • Programmable ticket format up to two 180-character printout
  • Configurable analog to digital measurement rate
  • Primary/secondary units configuration: lb, kg, ounces, grams
  • Five-button operation
  • Power for four 350ohm load cells
  • Full front-panel digital calibration and configuration
  • Three-stage digital filtering
  • Tilt stand
  • Time and date (volatile)
  • Consecutive transaction numbering

SWS-0850-ASM Options

If you need to customize the scale further, you can choose from one of the following options:

  • Load cell plug
  • Revolution III Scale Software
  • Extra operating manual
  • External disconnection

Click here to check out the SWS-850-ASM technical manual.

SWS-1100-ASM LCD Scale with Backlight

HI_120Plus_Scale

The SWS-1100-ASM model offers three-stage digital filtering for stable and accurate weight measurements. The easy-to-read LCD with backlight makes weighing pallets easy—even in bright or low-light conditions.

The two independent communication ports offer print ticket and full EDP programmability. You can power the scale via the included wall adaptor or rechargeable battery that comes with a power save feature and 700 hours of battery life.

SWS-1100-ASM Specs

Standard features include:

  • Large .8in (20mm) LCD with backlight
  • Powered with rechargeable battery or wall adapter
  • Power save feature for 700 hours of battery life
  • Two setpoints with delay and timer selections (requires option)
  • Three digital inputs (requires option)
  • Ten stored tare values
  • Display hold based on 3-second average
  • Tilt stand
  • Time and date

SWS-1100-ASM Options

If you’d like to customize the SWS-1100-ASM further, you can choose from the following options:

  • Revolution® III Scale Software
  • Digital I/O card
  • 15 pin interface cable

Click here to check out the SWS-1100-ASM technical manual.

SWS-PRN-DT4X Barcode Label Printer

GoDex-Printer

Our optional barcode label printer will save time and improve packing and shipping operational efficiencies. Compact, rugged, and lightweight, it supports multiple communication ports and has 16MB SDRAM and a 4MG Flash memory that includes 2MB of user-available memory.

  • Print speed: Up to 7″/177 mm per second
  • Supports Ethernet, Serial, and USB ports
  • Enhanced label feeding mechanism and instant label detection
  • Free GoLabel label design software

You can print the following information:

  • Gross Weight
  • Net Weight
  • Time/Date
  • Tare Weight*
  • Consecutive Numbering*
  • Barcode*
  • QR Code*
  • Company Logo*
  • Custom Text*

*Requires additional programming

Click here for the full specs of the optional barcode label printer.

Advanced Scale Applications

If your packing and shipping operations require more advanced scale applications, Handle-It can supply you with one of several alternative Rice Lake Indicators. We will provide the custom software and programming and deliver a turn-key system.

The scale is separate from the machine controls, and we can put any type of scale on any one of our stretch wrapper machine models. Contact us today for more information.

Request a Quote

Available Scale and Pallet Wrapper Configurations

We can install built-in scales and label printers on most of our semi or fully automatic stretch wrap machines. You can also add an optional loading ramp for hand pallet jacks (SWM-SA-STDRMP) to each of the models listed. Below is a list of the stretch wrap machine with scale models:

Machine Types   Pallet Wrapper Model Number Scale Part Number Optional 4″ Label Printer
Entry Level Semi-Auto max 35 loads per day Handle-It model SWS-1100-ASM pallet wrapping machine

SM-SA-0600

 SWS-0850-ASM SWS-PRN-DT4X
Mid Level Semi-Auto max 100 loads per day Handle-It model SWM-SWM-SA-0800/0850PS pallet wrapping machine

SWM-SA-0800/0850PS

 SWS-0850-ASM SWS-PRN-DT4X
Heavy duty Semi-Auto max 300 loads per day Handle-It model SWM-SWM-SA-1100AC pallet wrapping machine

SWM-SA-1100AC

 SWS-1100-ASM SWS-PRN-DT4X
Fully Automatic max 300 loads per day Handle-It model SWM-SWM-SA-1100AA-C pallet wrapping machine

SWM-SA-1100AA-C

 SWS-1100-ASM SWS-PRN-DT4X

Learn More

Specifications

Quality

  • Designed and manufactured in Europe
  • Final assembly, testing, and programming in Milwaukee, Wi
  • ISO 9000 certification
  • CE compliant
  • Utilize high quality components
  • We test and pre-program every machine prior to shipment

FAQ

No, it is not a legal for trade scale. However, it is very accurate and suited for weighing pallets for shipping purposes.

A legal for trade scale has an NTEP certification of conformance. This means that it is capable of meeting NIST Handbook Requirements. Once it's purchased, it needs to be reported to the applicable county. The county will then seal it, allowing it to be used legally. These scales are used when selling products commercially based on weight.

Yes, we calibrate the scale at the factory and if it ever needs to get recalibrated it is a simple process.

Calibration is checking the accuracy of a scale. Certification is the process of calibrating a machine and stating that it meets legal requirements which would only apply if the scale were required to be “legal for trade”. If the scale is not required to be “legal” for trade then the certification is required.

Yes, we have an optional label printer that can print out labels containing the weight along with other information.

No, when you have the scale installed the machine is raised up higher so you will need a deck that fits up with the standard ramp to match the new height of the turntable.

Yes, we have a retrofit kit so that you can easily add a scale at a later time.

Handle-It Pallet Wrapping Machines with Scale and Optional Printer

Knowing the exact weight of your pallets helps cut down on unexpected shipping costs and back charges from trucking companies. The Handle It pallet wrapping machines with integrated scales will provide you with an accurate weight while saving time and money. Click below to learn more about the various available options and get a quote!
