Guard Rail – Heavy Duty

Handle-It® heavy duty warehouse guard rail, safety barriers, and forklift guardrails are tested to withstand 10,000 lbs at 4 mph. Quick ship stock in our Milwaukee, WI warehouse.

Rated for 10,000 lb impacts at 4 mph

18″ or 43″ tall posts with hardware included

Quick ship stock – Our top selling guard system!

Buy Online Request a Quote Dealer Locator

Categories: ,

Overview

Where to use our safety guard rail system & why using guard rail is important:

Warehouse guard railing systems are an essential safety component within your facility. Guard rail provides a physical and visual barrier to protect from forklift and powered vehicle accidents. The rail system can be installed along pedestrian walkways to keep your employees safe.

Guard rail separates work areas from forklift driving lanes. This reduces the chance of worker accidents and equipment damage. Places you should install guarding includes inplant offices, shipping departments, around machinery, walkways, and at the ends of pallet racking.

Basic Specifications and features:

  • Tested to withstand 10,000 lbs at 4 mph.
  • Constructed with high-quality ASTM A1011 steel.
  • Powder-coated Handle It® yellow for maximum visibility and durability.
  • Rail lengths from 2′ to 10′ long.
  • Columns are 4.75″ × 4.75″ steel square tube mounted on a 10″ × 10″ base plate.
  • Designed for faster installation to cut down on labor costs.
  • Single (18″) or double high (43″) rail systems.
  • Bolted rail or drop in rail styles.
  • Universal 4 way mounting posts eliminate the need for “end” or “line” posts.
  • All anchors and hardware/caps are included.
  • In-stock items can ship within 24 hours of P.O receipt.

Benefits of using a heavy-duty guard rail system:

  • Tested to withstand impacts of 10,000 lbs at 4 mph
  • Posts have pre-tapped holes on all four sides which enables 90 degree turns without additional hardware or special posts
  • The guardrail is powder-coated yellow for a durable and highly visible finish
  • Standard products are stocked, and custom lengths are available
  • Comes with a one-year limited warranty on all materials and workmanship

WHY BUY HANDLE-IT® HEAVY DUTY SAFETY GUARD RAIL?

  • Our extensive inventory means you get your material fast.
  • We ship orders the same or next day on standard items.
  • Our universal posts make installs quicker, saving you time and money.
  • We adhere to strict quality standards.
  • We’ll develop the Bill of Materials needed to get the job done right.
  • Our custom shop can create products to fit your unique design needs.
  • Real-Time Pricing: Quotes are sent within two hours or 1 day for a custom product.
  • Why guard railing is a sound investment for your facility

Buy Online

Install

AREAS TO INSTALL FORKLIFT SAFETY RAILS:

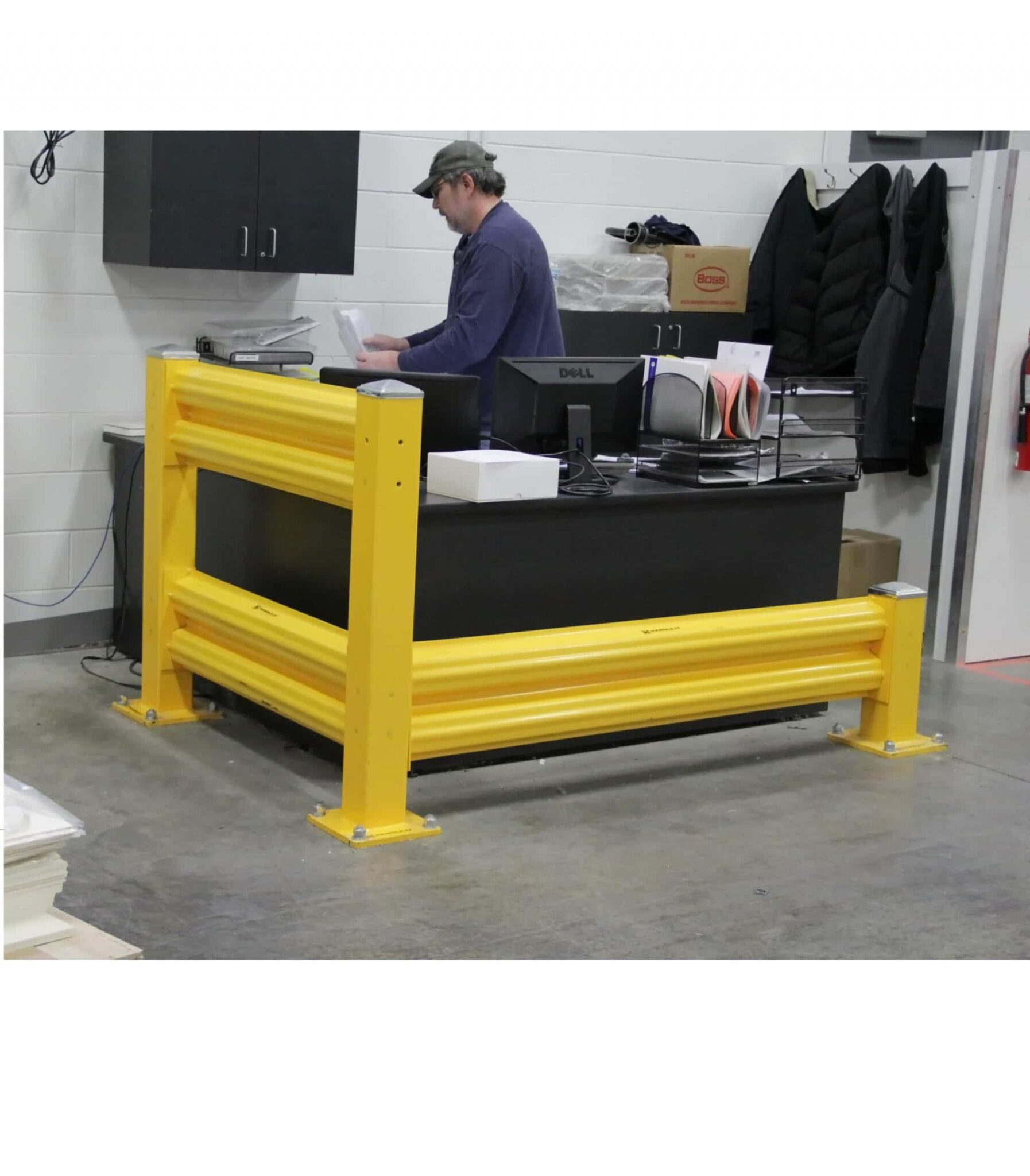

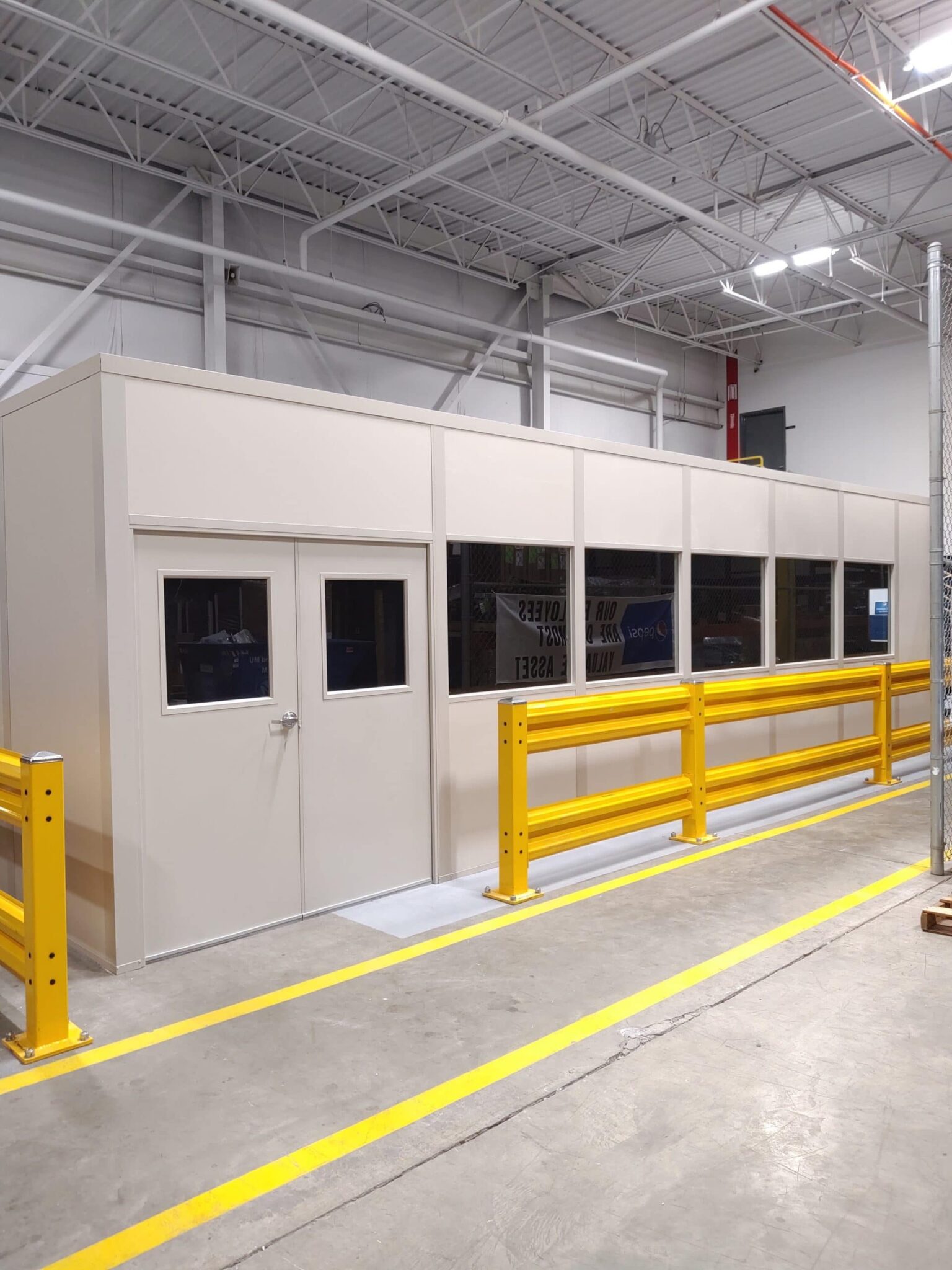

  • Around inplant offices and workstations
  • Along pedestrian walkways
  • To protect sensitive machines
  • At the end of warehouse rack aisles
  • Adjacent to conveyor lines
  • Around mezzanines
  • Shipping and packing areas

Buy Online

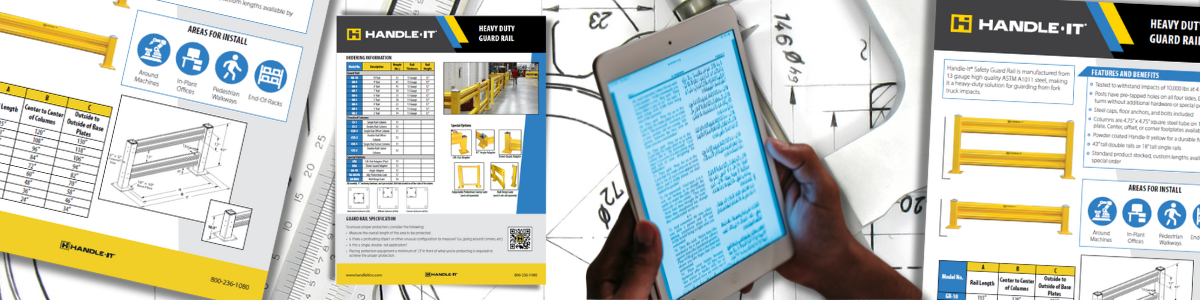

Literature

Installation Instructions

Handle-It Heavy Duty Guard Rail Product Info Sheet low res.pdf

Handle It Guard Rail Architectual Specifications.pdf

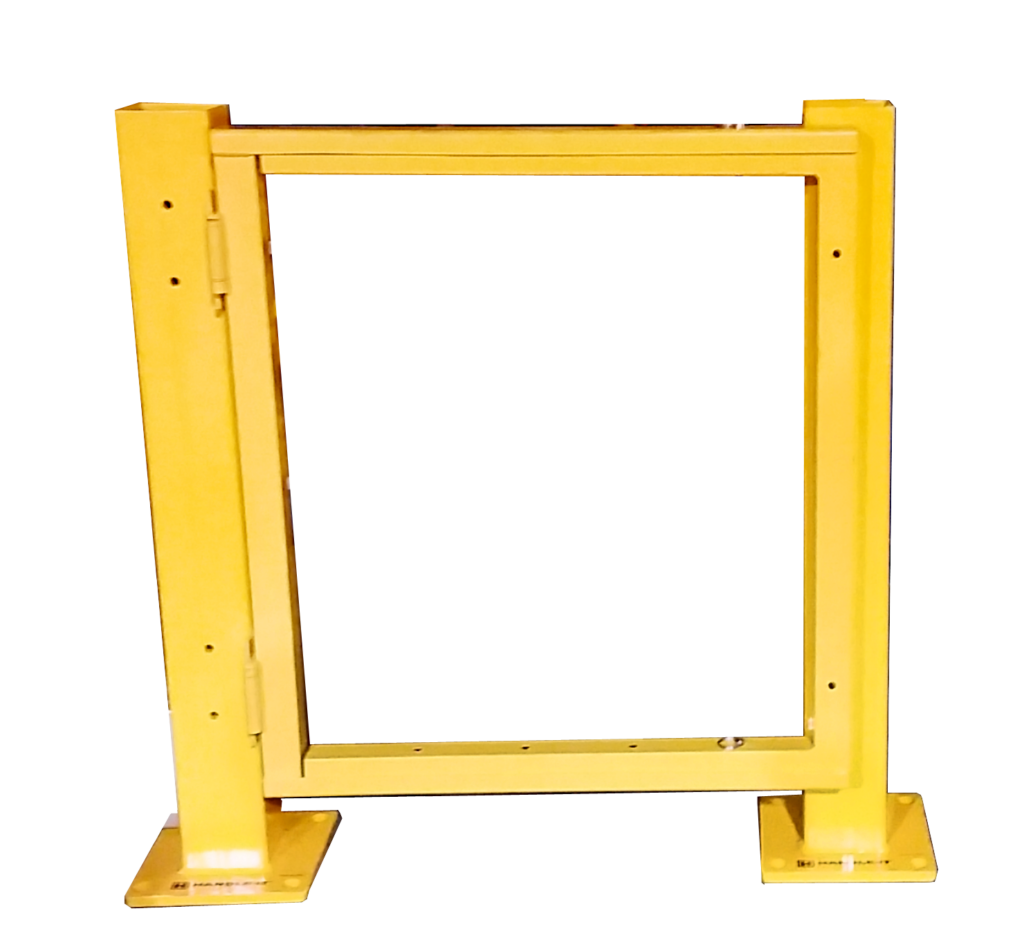

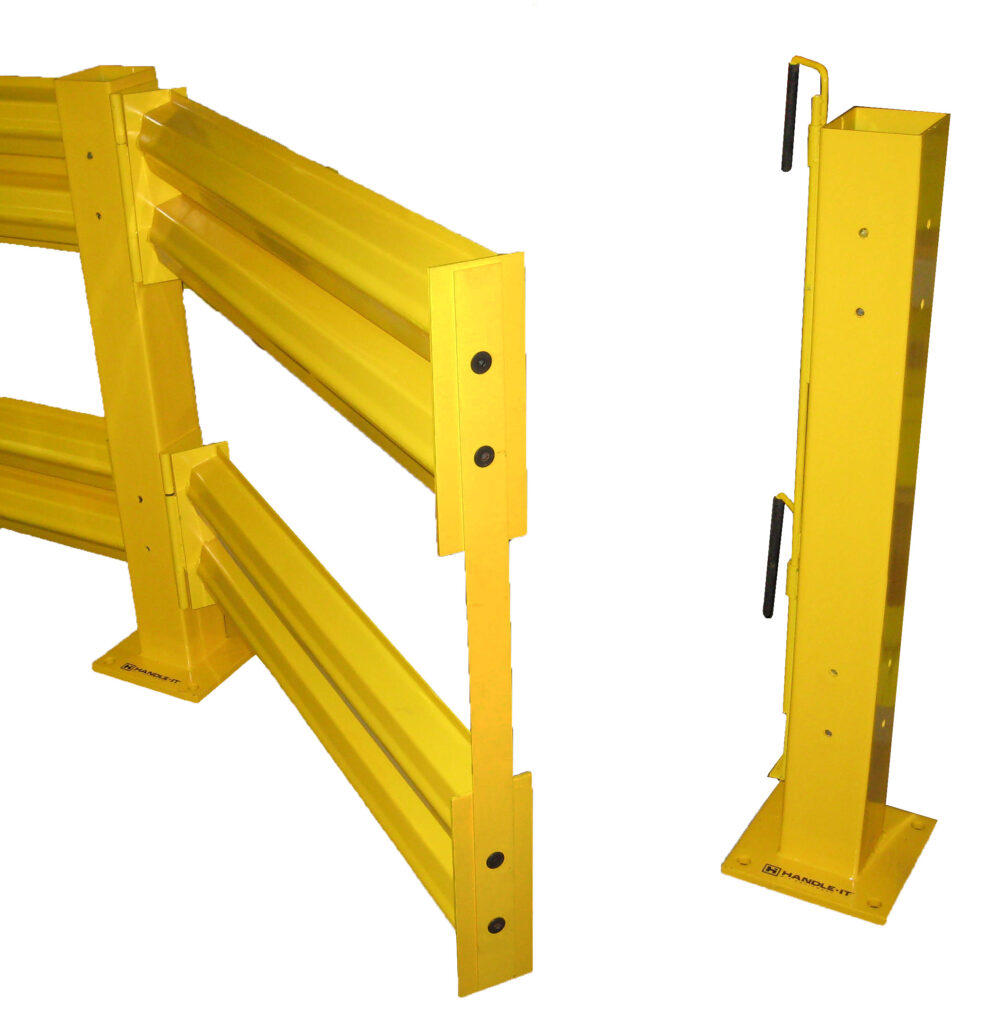

Adjustable pedestrian gate

Specifications

Guard Rail Specification

Handle-It warehouse guard rail drawing showing dimensions

Handle It Guard Rail Specifications

Part NumberA
Rail Length		B
Center to Center of Columns		C
Outside to Outside of Base Plates		Weight
GR-10115''120''130''52
GR-9103''108''118''47
GR-891''96''106''43
GR-779''84''94'' 38
GR-667''72''82''33
GR-555''60''70''28
GR-443''48''58''23
GR-331''36''46''19
GR-219''24''34''14

Post Styles

PartColumn HeightDescriptionBaseplate LocationWeight
CS-118.5"Single rail postCentered31
CSO-1
18.5"Single rail postOffset to one side 31
CSC-1
18.5"Single rail postSet to Corner of post 31
CS-243"Double rail postCentered52
CSO-243"Double rail postOffset to one side 52
CSC-243"Double rail postSet to corner of post52
CS-343"Triple rail postCentered52
SG-3654An/aPedestrian Swing Gate adjustable, 36"-54"n/a37

Column Options

Buy Online

FAQ

Yes, all necessary hardware is included. (Anchors, metal post caps, bolts, and washers.)

Yes, we can quote you any specific length that you would need.

We measure our lengths from center to center of the post. i.e. 10' rail is 115" long + each half of the adjacent post 2.5"+2.5" = 120"

Yes, we can quote our products in colors other than yellow.

Yes, we can install our guardrail system outside. However, the elements will eventually cause the steel to rust through moisture, etc.

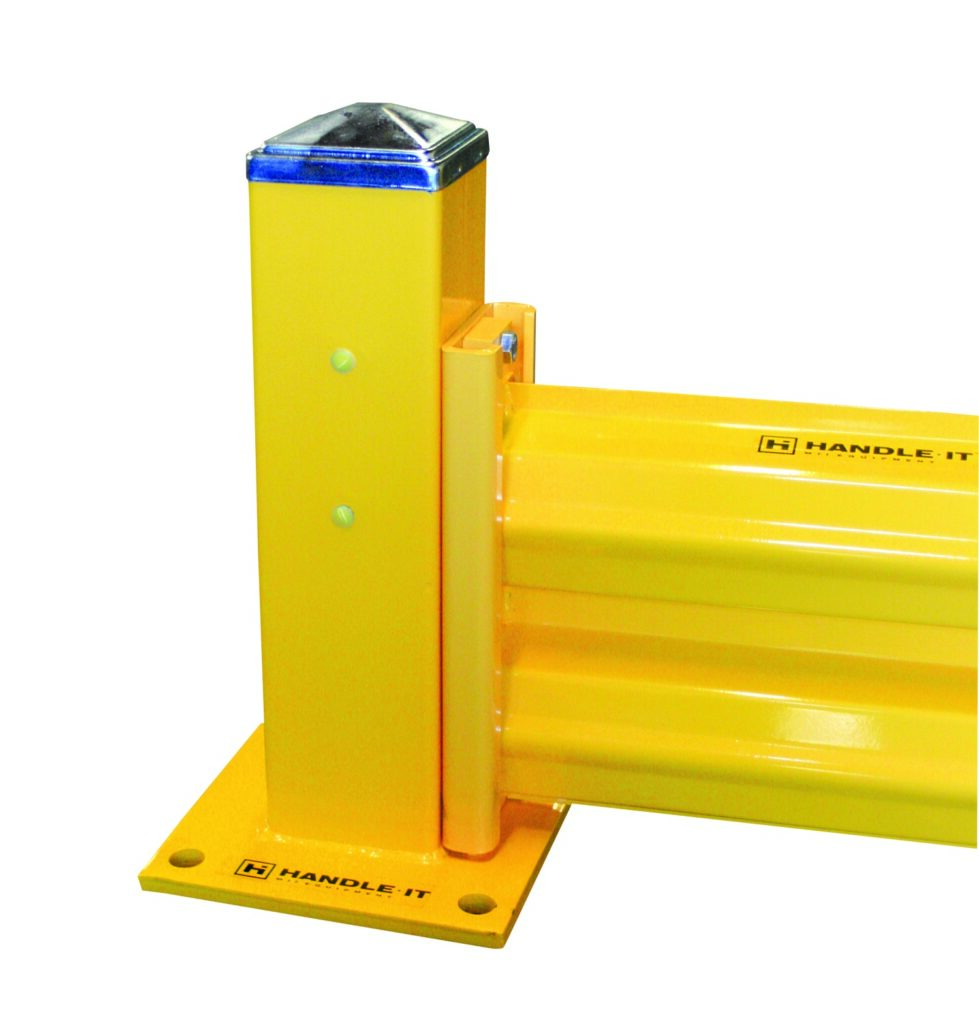

Yes, our Down guard adaptor (DGA) allows you to install the bottom rail flush with the posts' base plate.

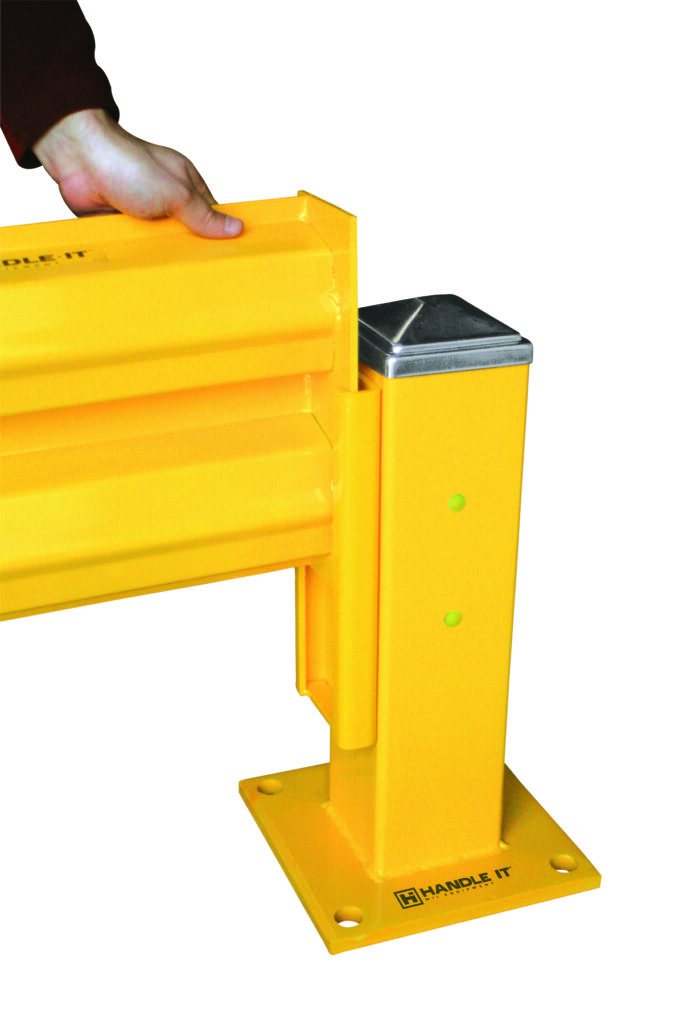

Yes, our Lift Out Adaptor (LOA) is a sleeve mounted to the post that allows you to drop in the rails.

Videos

Pedestrian Gate with Guard Rail System

Lift Out Adaptor Installation and Use

Guard Rail Offset Footplates and When to Use Them

Notes

  • Add 1” to dimensions B and C if Lift Out Adapter or Down Guard Adapter are being used
  • Add 1.5” to dimensions B and C if using Hinge Option

Guarantee/Warranty

Personal and professional customer service is offered on all Handle-It® Guard Rails. Our Guard Rail carries a one-year limited warranty on all materials and workmanship.
