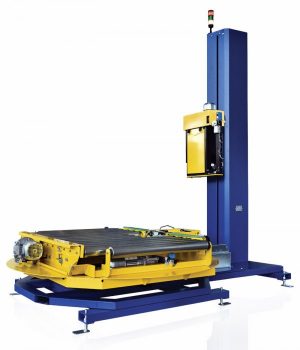

FA 4100 TURNTABLE AUTOMATIC PALLET WRAPPER

Our FA 4100 is the top of the turntable range of equipment. It is designed for high throughput. There is a slewing bearing for the turntable and a rugged build quality.

PLC Controls

Powered roller conveyor

Turntable slewing bearing and rugged build quality

40 pallet per hour production

Request a Quote

Categories: ,

Overview

Performance

  • 40 pallets per hour production.
  • 86″ maximum load wrap height -118″ extended height available.
  • 3800lb maximum load weight capacity.
  • 250% power pre-stretch film carriage for improved efficiency.
  • Auto film attach, hot weld seal, and film auto cut.

Features

  • Frequency controller for rotation speed adjustment
  • Frequency controller for carriage speed adjustment
  • Electromagnetic brake for film tension
  • Photocell for pallet height detection
  • Safety stop at the base of the carriage
  • Stop at 0 position
  • Power board IP54
  • Password lock mode
  • Adjustable parameters by the control panel: cycle selection, bottom wrap counts, top wrap counts, rotation speed, carriage speed going up, carriage speed going down, film tension
  • 10 wrap programs can be saved by the customer
  • 4 cycle types: automatic, semimanual, semiautomatic, and fixed height
  • Acoustic warning at the cycle beginning and stop
  • Wrapped pallet counter
  • Autodiagnostic
  • Powder coating
  • Soft start and stop

Literature

Proposal FA 4100.pdf

Accessories

  • Dark load photoeye
  • Top press
  • Adjustable power pre-stretch
  • Extended wrap height 118″
  • Integrated scale
  • In feed and out feed conveyor
  • Safety fencing
  • Light curtains
  • Film slitting device for ventilated loads

Specifications

  • Max pallet size 40″x 48″
  • 480v 3 phase
  • PLC type Siemens S7 1200
  • Operator control Siemens TP 177
  • Air supply 90 psi to operate sealing unit

Quality

  • Designed and manufactured in Europe
  • Final assembly, testing, and programming in Milwaukee, Wi
  • ISO 9000 certification
  • CE compliant
  • Utilize high quality components
  • We test and pre-program every machine prior to shipment

Guarantee/Warranty

Handle It, Inc. provides a 2 year warranty from delivery date to be free from defects in materials and workmanship as described below. This warranty covers all of Handle It products and assumes normal service will be performed by the user outlined in the owner’s manual. This warranty also assumes frequency of use of this product will not exceed the parameters outlined in the owner’s manual.

Structural components manufactured by Handle It, Inc. are warranted to be free from defects in material and workmanship for a period of 2 years from the date of machine shipment. During the warranty period Handle It, Inc. will, at its option, either repair or replace any failed component.
Rollers are not warranted against physical damage, corrosion, abuse or negligence. Wear parts such as e.g. belts, fuses, light bulbs, circuit breakers, brakes, motor brushes, slip rings brushes, etc. are excluded from this warranty.
