Rack Protectors | End of Row Guards

Handle It® end of aisle rack protectors guard your pallet rack frames from dangerous and costly forklift impacts.

We offer both heavy duty and standard duty options depending on your needs and budget.

Our end of row rack protectors provide superior protection at the end of your pallet rack aisles. They are designed to withstand forklift and other vehicle impacts. It is important to preserve the integrity of the racking systems. Damaged racking is a safety concern and can lead to a catastrophic accident.

42” or 48” long guards to fit common rack frames

Left and right hand orientation for back to back pallet racks

Double loop guards for single rows of rack

We can cut to size or provide extender pieces for deep rack frames

Buy Online Request a Quote Dealer Locator

Categories: ,

Overview

  • Increase the life of your racking without costly replacement of damaged column legs.
  • 6″x4″ angle with 12″ tall “half moon” guard designed specifically for pallet racking.
  • Increased safety for your workers- prevent direct impacts with pallet rack frames. Damaged frames can lead to dangerous and costly accidents.
  • Single lefts and rights or double ended for single rows of rack  in 42″ or 48″ lengths.
  • Powder coated Handle It yellow for high visibility.
  • Heavy Duty (.375”) and standard duty (.25″) thickness.
  • Custom sizes and extensions to fill spacer gaps available.

Literature

Rack Protectors 2023 Update.pdf

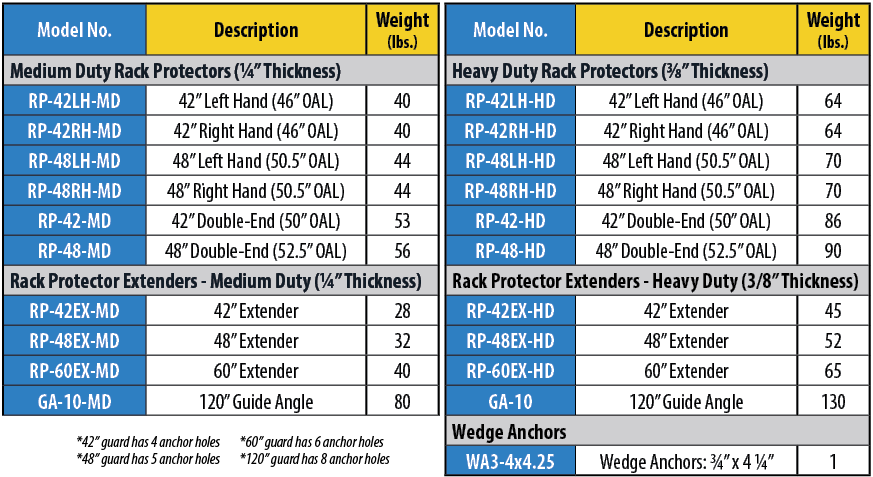

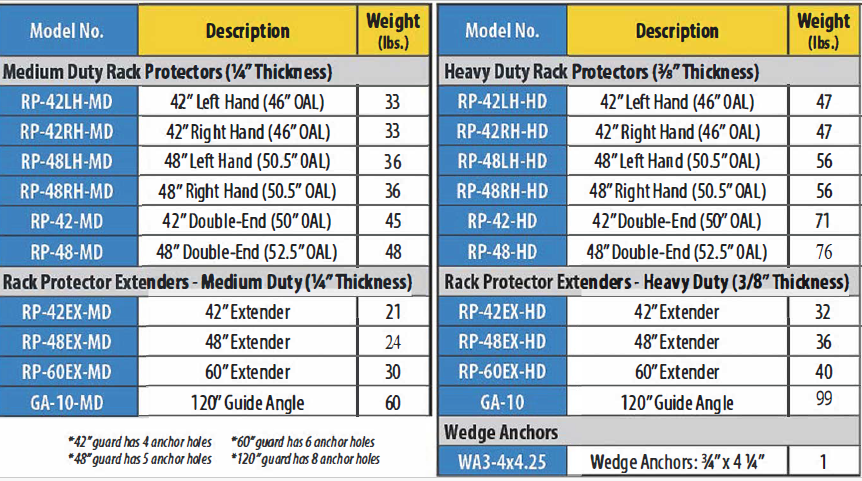

Specifications

Left hand style

Right hand style

Double sided style

Part Number Extension Length Angle Dims. Curve Height Thickness OrientationShipping Weight
RP-42LH-MD42"6"X4"12".25Left38
RP-42RH-MD42"6"X4" 12".25Right38
RP-48LH-MD 48"6"X4"12".25Left42
RP-48RH-MD 48"6"X4"12".25Right42
RP-42EX-MD 42"6"X4".25Extender22
RP-48EX-MD48"6"X4".25Extender25
RP-60EX-MD60"6"X4".25Extender40
RP-42LH-HD42"6"X4"12".375Left64
RP-42RH-HD42"6"X4"12".375Right64
RP-48LH-HD48"6"X4"12".375Left70
RP-48RH-HD48"6"X4"12".375Right70
RP-42EX-HD42"6"X4".375Extender46
RP-48EX-HD48"6"X4".375Extender52
RP-60EX-HD60"6"X4".375Extender65
RP-42-MD42"6"X4"12".25Double43
RP-48-MD48"6"X4"12".25Double48
RP-42-HD42"6"X4"12".25Double82
RP-48-HD48"6"X4"12".25Double88
Part Number Extension Length Angle Dims. Curve Height Thickness OrientationShipping Weight
RP-42LH-MD42"6"X4"12".25Left38
RP-42RH-MD42"6"X4" 12".25Right38
RP-48LH-MD 48"6"X4"12".25Left42
RP-48RH-MD 48"6"X4"12".25Right42
RP-42EX-MD 42"6"X4".25Extender22
RP-48EX-MD48"6"X4".25Extender25
RP-60EX-MD60"6"X4".25Extender40
RP-42LH-HD42"6"X4"12".375Left64
RP-42RH-HD42"6"X4"12".375Right64
RP-48LH-HD48"6"X4"12".375Left70
RP-48RH-HD48"6"X4"12".375Right70
RP-42EX-HD42"6"X4".375Extender46
RP-48EX-HD48"6"X4".375Extender52
RP-60EX-HD60"6"X4".375Extender65
RP-42-MD42"6"X4"12".25Double43
RP-48-MD48"6"X4"12".25Double48
RP-42-HD42"6"X4"12".25Double82
RP-48-HD48"6"X4"12".25Double88

FAQ

  • Heavy duty rack protectors provide maximum impact protection against forklifts and warehouse traffic.
  • The heavy duty guards are ideal in a warehouse with heavy vehicle traffic.
  • Standard duty rack guards are a low cost option that still provide protection against pallet rack frame damage.

Videos

Rack Protectors and Seismic Back to Back Racking

Double Ended Rack Guards and Single Rows of Seismic Racking

Guarantee/Warranty

Personal and professional customer service is offered on all Handle It products. Our rack protectors carry a three-year limited warranty on all materials and workmanship.
