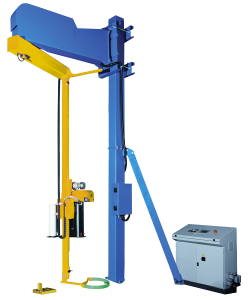

RA 2200 AAC Automatic Rotary Arm Pallet Wrapper

The Handle It® Model 2200 AAC Rotary Arm Automatic Pallet Wrapper is our introductory rotatating arm series model. It’s ideal for very heavy or unstable pallets an is assembled as a fully automated machine. It comes with all of the features you want in a stretch wrapping machine and provides all the advantages of a rotating arm stretch wrap machine at an affordable price.

Includes Auto-cut and Auto-Attach features

Quickly wrap extra heavy or unsteady pallet loads

9 adjustable parameters

250% film pre-stretch carriage

Request a Quote

Categories: ,

Overview

Performance & Specifications

  • Max load size: 82” diagonal x 94” high
  • Fixed pedestal mount
  • 110V plug-in
  • Photo eye auto pallet height sensor
  • Power prestretch carriage (up to 250%)
  • Safety stop loop at base
  • Stop at 0 position
  • 9 adjustable parameters
  • 6 working cycles
  • 32 end user program storage
  • Wrapped pallet counter
  • Rack & pinion carriage drive track
  • Overall dimensions: 125” length x 113” width x 140” height

MAIN OPTIONS

  • Adjustable power prestretch carriage (600%)
  • Automatic feature – Auto-attach system
  • Automatic feature – Auto-cutoff system
  • Automatic feature – Remote control
  • Roping system
  • 118” max wrap height
  • Photo cell for dark or re ective loads
  • Upgraded arm for 48” x 48” loads

Literature

SWM-RA-2200AA-C Product Information Sheet

Accessories

  • Adjustable power prestretch carriage (600%)
  • Auto-cutoff system
  • Roping system
  • 118” max wrap height
  • Remote control
  • Photo cell for dark or reflective loads
  • Extended arm for 114″ load diagonal
  • Light curtain
  • Safety fencing

Specifications

  • Max Average Loads: 300 per day
  • Type: Rotary Arm
  • Load Capacity: Unlimited
  • Power requirement:110v
  • Air supply (film sealing unit):90 psi
  • Max Pallet Size: Customizable
  • Machine Dimensions (L x W x H):125” L x 113” W x 140” H
  • Pneumatic Sealing Unit (Film clamp, cut, & hot weld film tail)
  • Electronic Film Tension Control
  • Power Pre-Stretch 250%
  • Variable Power Pre-Stretch (600%): Optional
  • Carriage Drive system: Belt
  • Standard maximum wrap height: 94”
  • Extended Mast Wrap Height:118”
  • Custom Top & Bottom Wraps
  • Integrated Scale: Optional
  • Onboard Diagnostics Optional
  • Total Pallets Wrapped counter: Yes
  • # Of User Saved Cycle Programs:32
  • Powder Coating
  • Braked arm at the end of the cycle

Quality

  • Designed and manufactured in Europe
  • Final assembly, testing, and programming in Milwaukee, Wi
  • ISO 9000 certification
  • CE compliant
  • Utilize high quality components
  • We test and pre-program every machine prior to shipment

Guarantee/Warranty

The Model RA 2200 AAC has a 3 year warranty. For any service related questions, please call and our technicians will be happy to assist
